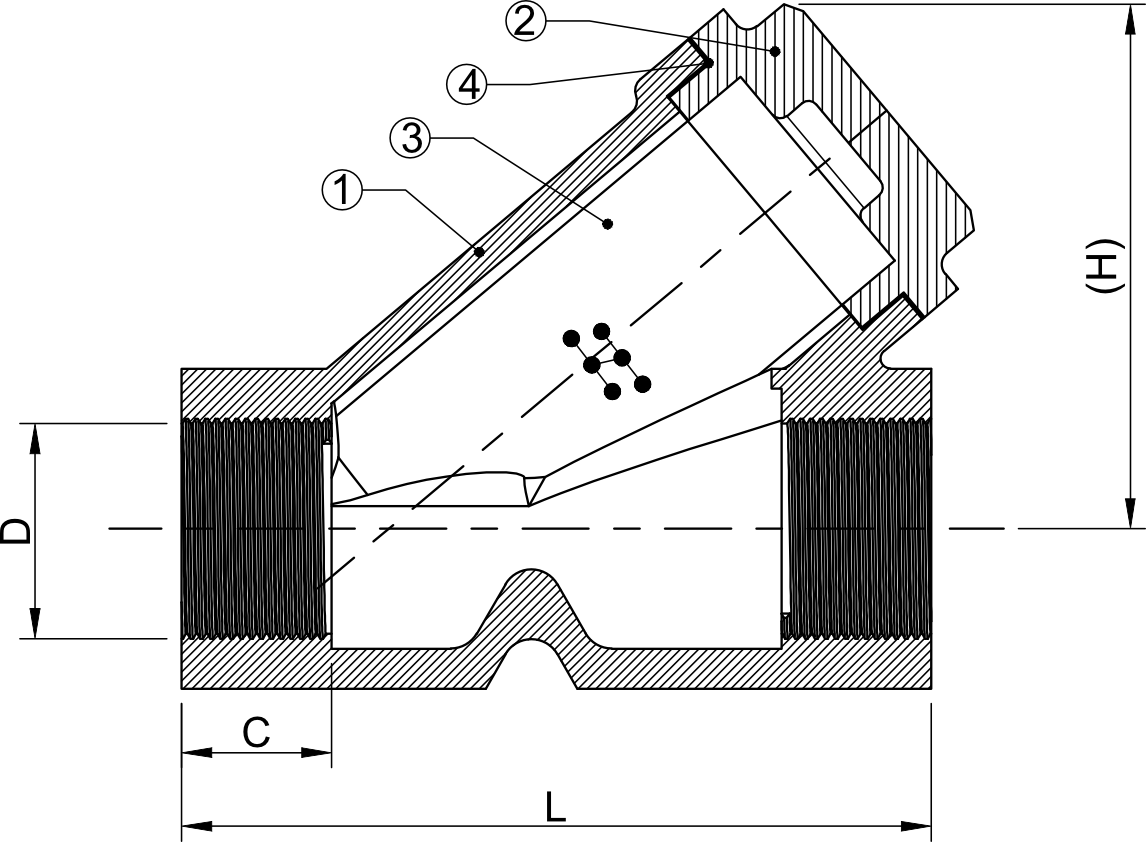

| No. | Parts | Material |
|---|---|---|
| 1 | Body | ASTM A351 CF8/CF8M |
| 2 | Ball | ASTM A351 CF8/CF8M |
| 3 | Seshe | ASTM A312 SS 304/316 |
| 4 | Gasket | TEFLON |
| Test Pressure (PSI/kg) | ||
|---|---|---|
| Testing | Body | Seat |
| Hydraulics | 1400 PSI | 1400 PSI |
| Seat Air | 210/15 | 210/15 |
| Valve Dimensions (Dimensions in MM) | ||||||||
|---|---|---|---|---|---|---|---|---|
| SIZE | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" |
| DN | 15 | 20 | 25 | 32 | 38 | 48 | ||
| D | 19.1 | 24.5 | 30.75 | 33.5 | 45.25 | 57.15 | ||
| H | 44.7 | 52.1 | 65.7 | 70 | 79.5 | 95.5 | ||
| C | 14 | 15 | 17 | 19 | 19 | 22 | ||
| L | 61 | 74 | 85 | 95 | 110 | 130 | ||
