Globe Valves - Forged Steel

We at Nova Valves, manufacturing of high quality Forged Steel Globe Valves. These Globe Valves are the highly recommended in Industrial Use, Commercial Use and also Residential Use.

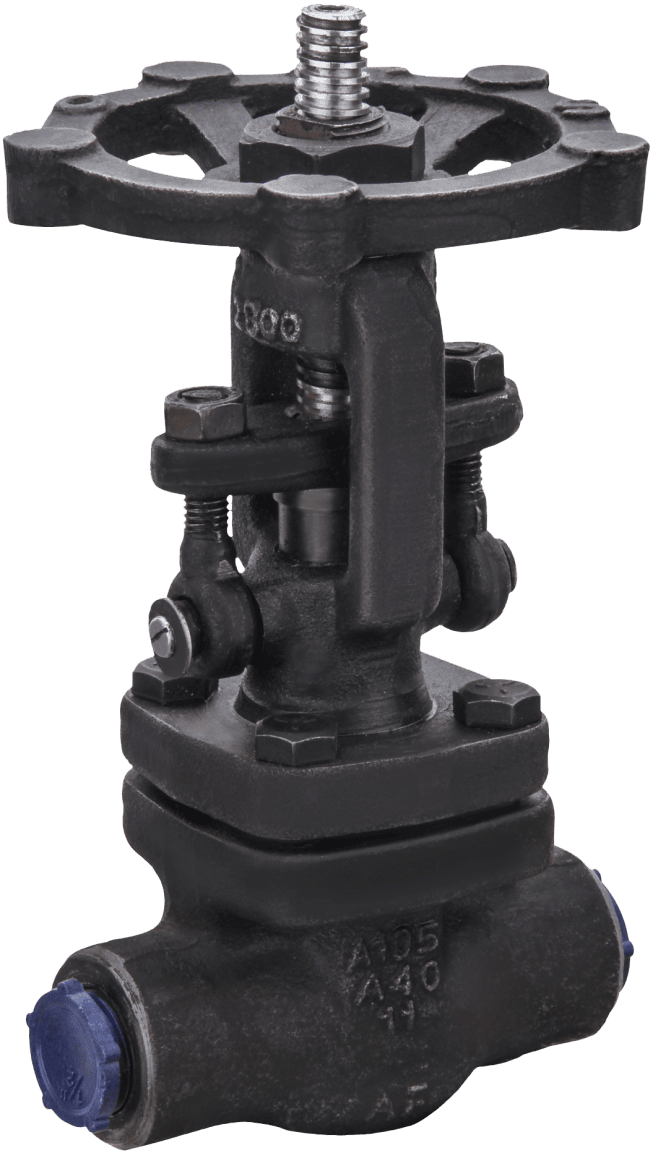

Globe Valve Forged Steel

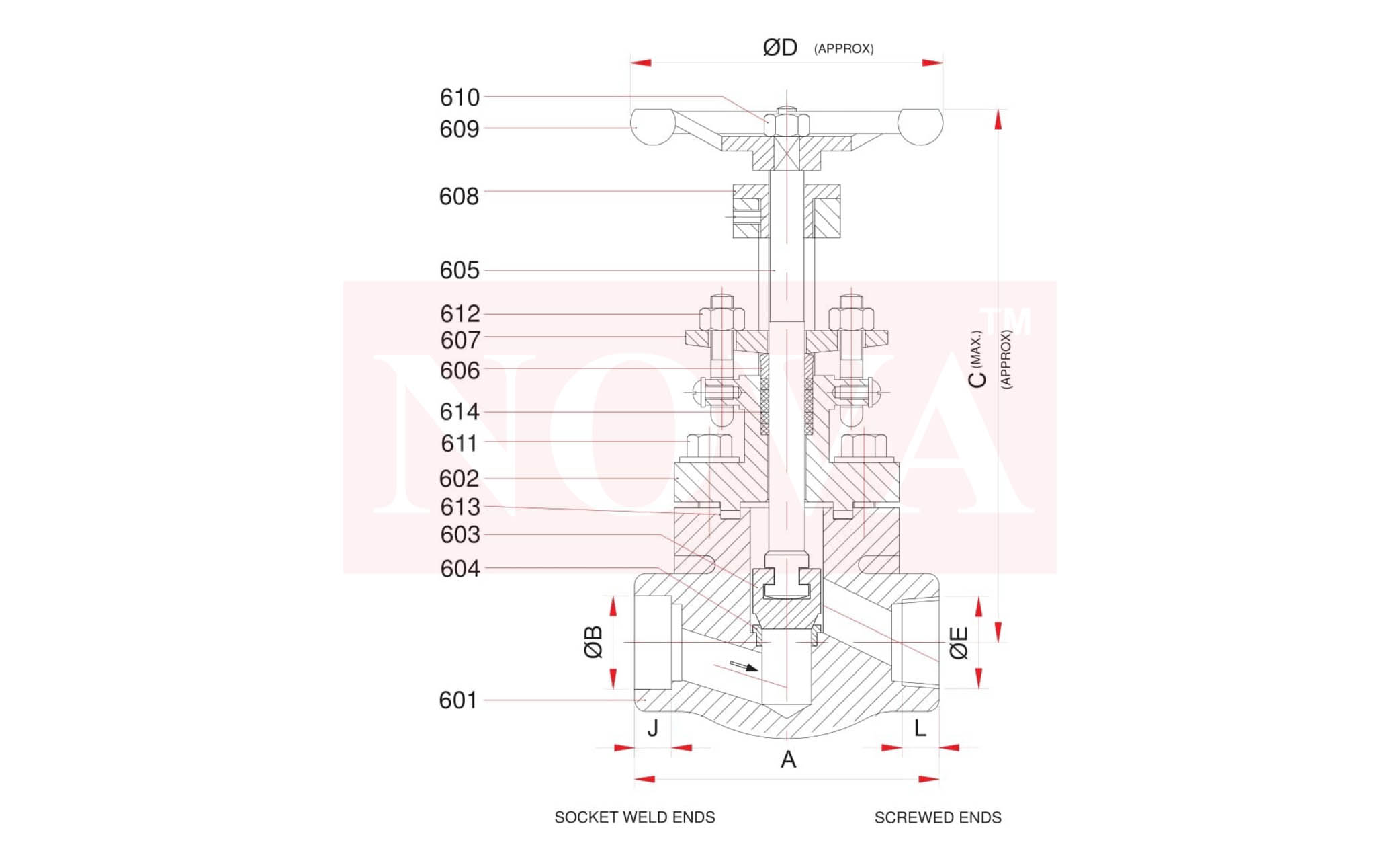

Forged Steel Globe Valve Drawing

Testing

PRESSURE RATING HYDROSTATIC SHELL TEST HYDROSTATIC SEAT & BACKSEAT TEST
Kg/CM2 Kg/CM2
800# 211 141
1500# 383 281

Material Description

SR. NO. PARTS NAME MATERIALS
601 BODY A 105 F 304 F 316
602 BONNET A 105 F 304 F 316
603 DISC AISI 410 AISI 304 AISI 316
604 SEAT RINGS AISI 410 AISI 304 AISI 316
605 SPINDLE AISI 410 AISI 304 AISI 316
606 GLAND BUSH AISI 410 AISI 304 AISI 316
607 GLAND FLANGE A 105 F 304
608 YOKE SLEEVE ASTM A 439 Gr.D2/AL-BRONZE
609 HAND WHEEL CAST STEEL /M.I
610 HAND WHEEL NUT Gr.2h
611 STUD & NUT B7/2H B8/8 OR B7/2H
612 EYE BOLT & NUT B7/2H B8/8
613 GASKET SPW S.S 304/316 WITH CAF/GRAFOIL
614 GLAND PACKING GRAPHITE ASBESTOS INHIB,& INCONEL WIRE REIN.

DIMENSION TABLE 800# (ALL DIM. IN MM)

SIZE A C ØD SCREWED ENDS SOCKET WELD ENDS
MM INCH ØE L ØB J MIN.
MAX. MIN.
15 1/2" 85 170 90 1/2" 13.56 22.22 21.72 9.65
20 3/4" 92 180 90 3/4" 13.87 27.56 27.05 12.7
25 1" 105 202 90 1" 17.35 34.29 33.78 12.7
40 1 1/2" 127 260 145 1 1/2" 18.38 49.15 48.64 12.7
50 2" 140 272 145 2" 19.23 61.62 61.11 15.75

DIMENSION TABLE 1500# (ALL DIM. IN MM)

SIZE A C ØD SCREWED ENDS SOCKET WELD ENDS
MM INCH ØE L ØB J MIN.
MAX. MIN.
15 1/2" 8\92 180 90 1/2" 13.56 22.22 21.72 9.65
20 3/4" 105 202 90 3/4" 13.87 27.56 27.05 12.7
25 1" 127 260 145 1" 17.35 34.29 33.78 12.7
40 1 1/2" 140 272 145 1 1/2" 18.38 49.15 48.64 12.7
