Rotary Joint for Steam
We at Nova Valves manufacturing of high quality Rotary Joint for Steam. These Rotary Joint Couplings for Steam are highly recommended in Industrial Use and, Commercial Use.

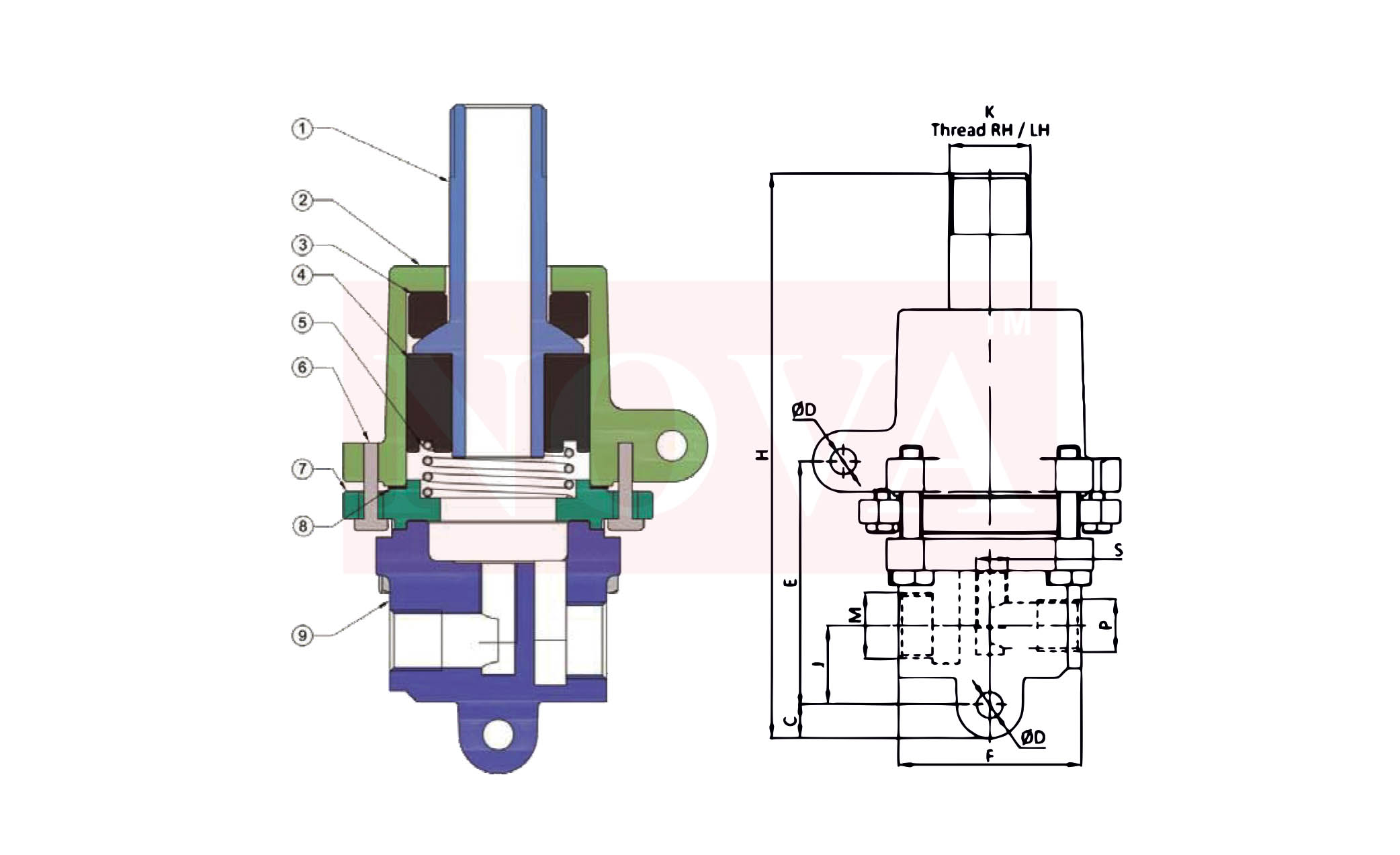

Size Table
| Model | Size | K (BSP)Rotor Conection | C | E | H | J | MBSP | PBSP | SBSP | ØD | F | Weight (Kg.)Approx. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NAXS - 15 | 1/2" | 1/2" | 7.5 | 85 | 160 | 21 | 1/4" | 1/4" | 1/8" | 6.5 | 53 | 1.700 |
| NAXS - 20 | 3/4" | 3/4" | 12.5 | 105 | 207 | 29 | 1/2" | 1/2" | 1/4" | 9.5 | 69 | 3.150 |
| NAXS - 25 | 1" | 1" | 13.5 | 103 | 232 | 29 | 3/4" | 1/2" | 1/4" | 10 | 75 | 3.800 |
| NAXS - 32 | 1.1/4" | 1.1/4" | 15 | 120 | 263 | 36 | 1" | 1/2" | 1/2" | 14 | 84 | 5.400 |
| NAXS - 40 | 1.1/2" | 1.1/2" | 17 | 140 | 305 | 44 | 1.1/4" | 3/4" | 3/4" | 14 | 107 | 9.500 |
| NAXS - 50 | 2" | 2" | 16 | 145 | 340 | 49 | 1.1/2" | 3/4" | 3/4" | 14 | 114 | 10.800 |
Material Description
| No. | Part Name | Material |
|---|---|---|
| 1 | Shaft | CF8 (SS 304) |
| 2 | Body Top | Cast Iron |
| 3 | Seal Ring | Carbon |
| 4 | Carbon Bush | Carbon |
| 5 | Spring | S. S. 304 |
| 6 | Hex Bolt | Standard |
| 7 | Cover Plate | Cast Iron |
| 8 | Gasket | C.A.F. |
| 9 | Connection Body | Cast Iron |
Technical Specifications
| Model | NAXS |
| Size | 1/2" to 2" RH & LH Thread |
| Pressure | Upto 10 Kg/cm² |
| Temperature | Upto 180ºC |
| RPM | 300 Max. |
| Media | Only for Steam |
