Globe Valves - Flange End
Nova Valves is a trusted manufacturing of high quality Flange End Globe Valves. Nova Valves Globe Valves are the highly recommended in Industrial Use, Commercial Use and also Residential Use.
Testing
| PRESSURE RATING | HYDROSTATIC SHELL TEST | HYDROSTATIC SEAT TEST |
|---|---|---|
| Kg/CM2 | Kg/CM2 | |
| 150# | 31.5 | 22 |
| 300# | 79 | 58 |
| 600# | 157.5 | 114 |

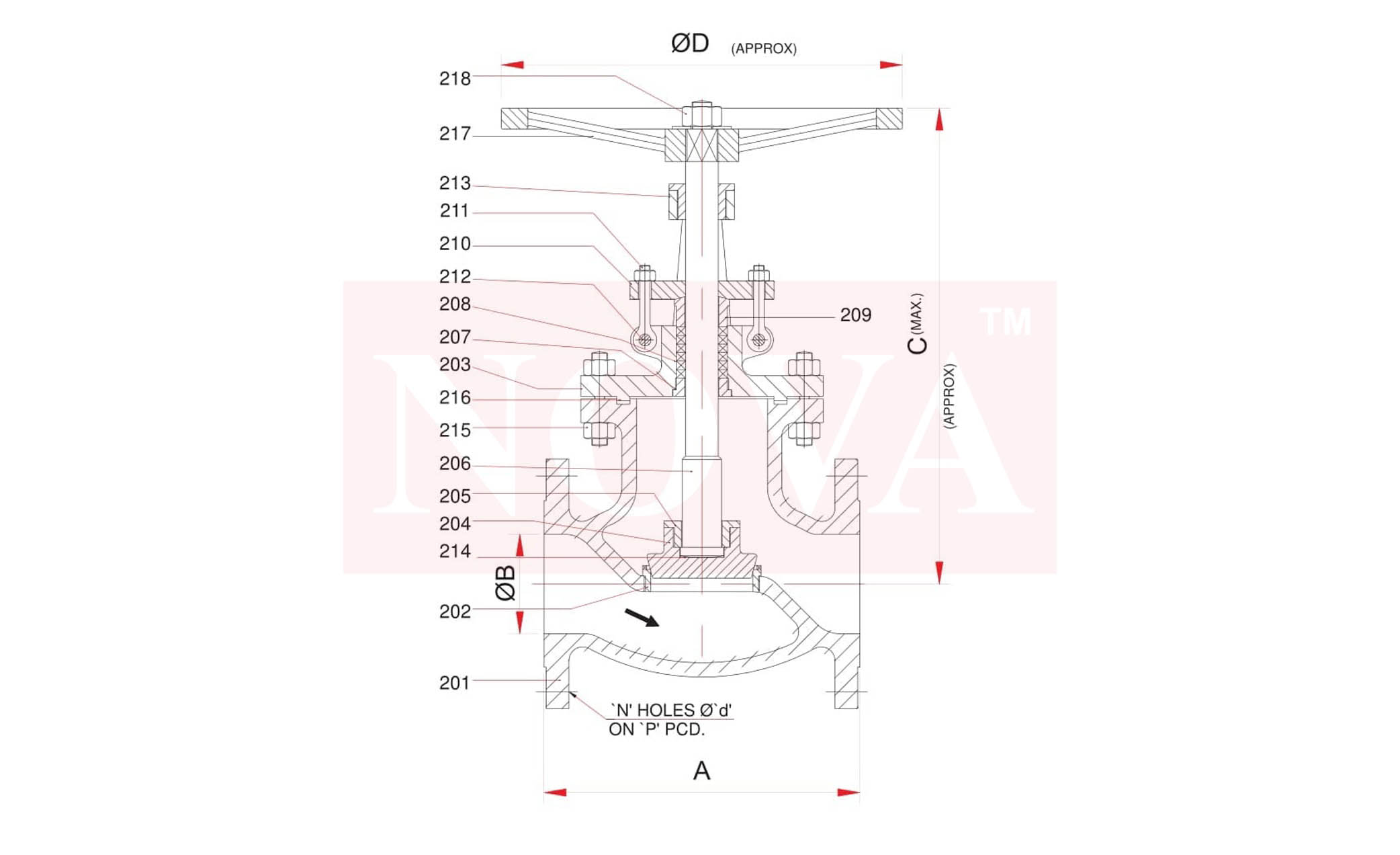

Material Description
| SR. NO. | PARTS NAME | MATERIALS | ||
|---|---|---|---|---|
| 201 | BODY | A216-WCB | A351-CF8 | A351-CF8M |
| 202 | SEAT RING | A105+13%Cr | A351-CF8 | A351-CF8M |
| 203 | BONNET | A216-WCB | A351-CF8 | A351-CF8M |
| 204 | DISC | A217-CA15 | A351-CF8 | A351-CF8M |
| 205 | DISC NUT | A276-410 | A351-CF8 | A276-316 |
| 206 | STEM | A276-410 | A351-CF8 | A276-316 |
| 207 | BACK SEAT NUT | A276-410 | A276-304 | A276-316 |
| 208 | STEM PACKING | GRAPHITE RINGS(BRAIDED & MOULDED | ||
| 209 | GLAND BUSH | A276-410 | A276-304 | A276-316 |
| 210 | GLAND FLANGE | WCB | SS 304 | SS 316 |
| 211 | EYE BOLT EITH NUT | A307-Gr.B | F304 | F304 |
| 212 | EYE BOLT PIN | A276-410 | A276-410 | A276-410 |
| 213 | STEM NUT | ASTM A439-D2 | ||
| 214 | THRUST PAD | A276-410 | A276-304 | A276-316 |
| 215 | FULL THREAD STUD WITH 2HEAVY NUTS | A193-B7/A194-2H | A193-B8/A194-8 | A193-B8M/A194-8M |
| 216 | GASKET | SS+GRAPHITE FILLED | ||
| 217 | HAND WHEEL | DI/CS | ||
| 218 | NUT WITH WASHER | A194-2H | ||
DIMENSION TABLE 150# (ALL DIM. IN MM)
| SIZE | A | ØB | C(MAX.) | ØD | |
|---|---|---|---|---|---|
| MM | INCH | ||||
| 50 | 2" | 203 | 52 | 330 | 200 |
| 80 | 3" | 241 | 76 | 380 | 250 |
| 100 | 4" | 292 | 102 | 450 | 355 |
| 150 | 6" | 406 | 153 | 535 | 355 |
| 200 | 8" | 495 | 204 | 705 | 455 |
| 250 | 10" | 622 | 254 | 785 | 510 |
| 300 | 12" | 698 | 305 | 815 | 610 |
DIMENSION TABLE 300# (ALL DIM. IN MM)
| SIZE | A | ØB | C(MAX.) | ØD | |
|---|---|---|---|---|---|
| MM | INCH | ||||
| 50 | 2" | 267 | 52 | 340 | 200 |
| 80 | 3" | 318 | 76 | 396 | 250 |
| 100 | 4" | 356 | 102 | 465 | 355 |
| 150 | 6" | 444 | 153 | 567 | 455 |
DIMENSION TABLE 600# (ALL DIM. IN MM)
| SIZE | A | ØB | C(MAX.) | ØD | |
|---|---|---|---|---|---|
| MM | INCH | ||||
| 50 | 2" | 292 | 52 | 360 | 250 |
| 80 | 3" | 356 | 76 | 440 | 355 |
| 100 | 4" | 432 | 102 | 495 | 355 |
