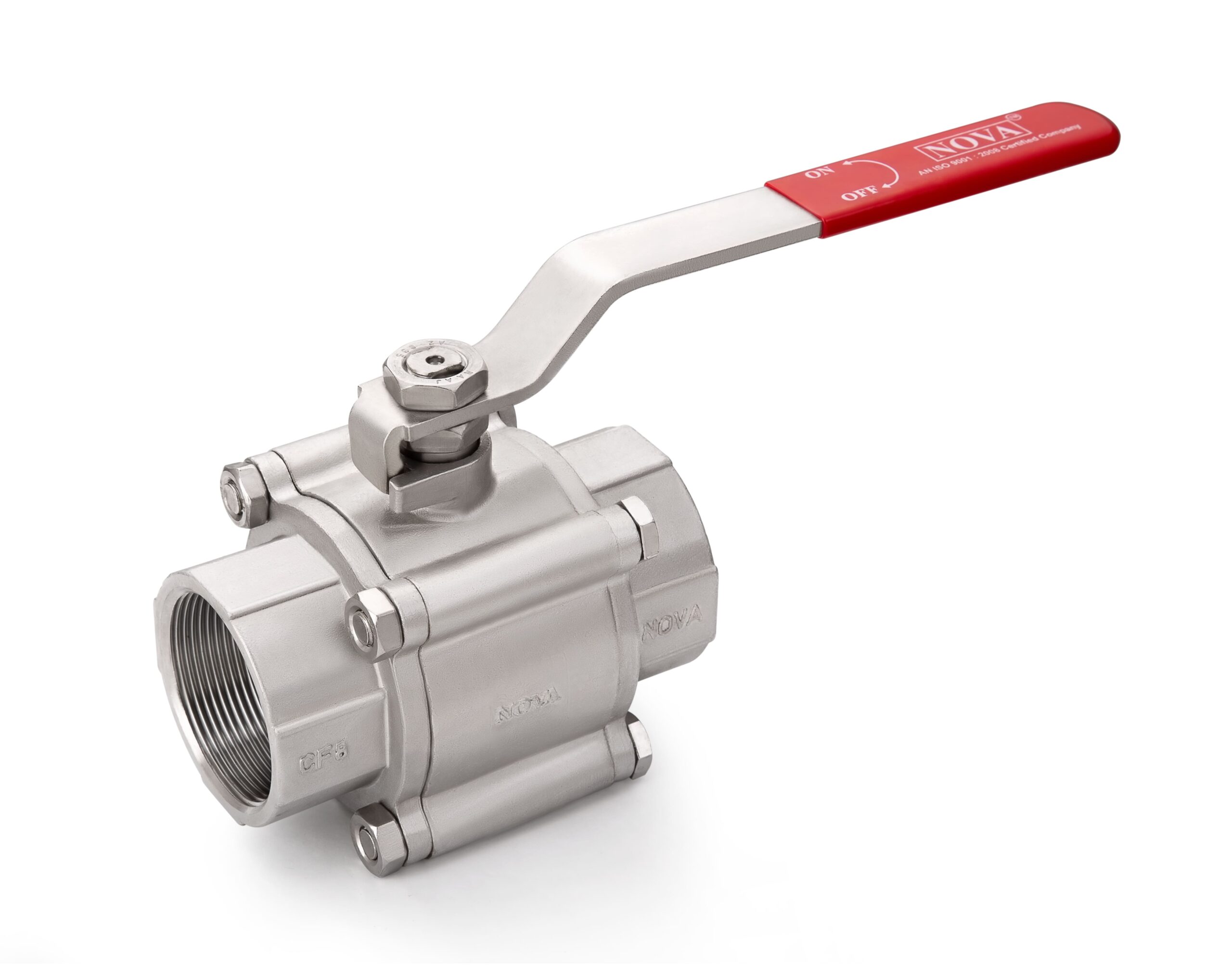

Ball Valves 3 Piece Screwed End

Ball Valves 3 Piece Screwed End

We are one of the trusted manufacturer of high quality 3 Piece Ball Valves. Our 3 Piece Ball Valves are the highly recommended in Industrial Use, Commercial Use and also Residential Use.

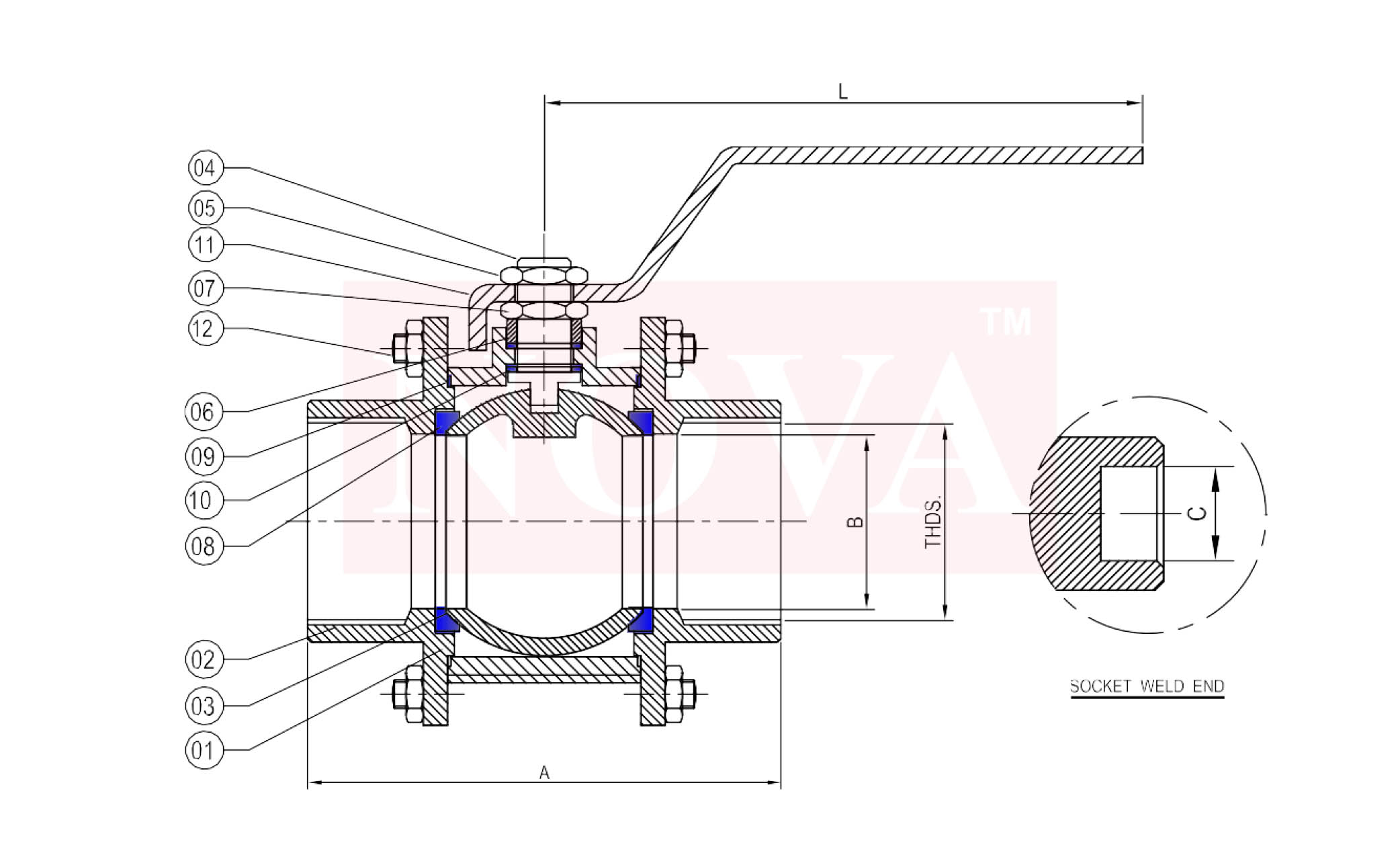

Size table

CLASS – 150#
SIZE A B L C THDS. BSP / BSPT / NPT
IN. MM
1/2” 15 79 14 125 21.7 1/2”
3/4” 20 81 20 125 27.0 3/4”
1” 25 89.5 25 142 33.8 1”
1 1/4” 32 97 32 195 42.5 1 1/4”
1 1/2” 40 111 40 195 48.6 1 1/2”
2” 50 129 50 215 61.0 2”
2 1/2” 65 143 63 245 73.3 2 1/2”
3” 80 156 75 245 90.2 3”
4” 100 184 100 280 102.0 4”

Material Description

No. DESCRIPTION MATERIAL QTY.
1 BODY CS / CF8 / CF8 M 1
2 BODY CONNECTION CS / CF8 / CF8 M 2
3 BALL S.S. 304 / S.S. 316 1
4 STEM S.S. 304 / S.S. 316 1
5 GLAND NUT S.S. 304 / S.S. 316 / M.S. 1
6 GLAND BUSH S.S. 304 / S.S. 316 / M.S. 1
7 LOCK NUT S.S 304 / S.S. 316 1
8 SEAT RING P.T.F.E. / G.F.T. 2
9 STEM SEAL CARBON FILLED TEFLON 2
10 BODY SEALENT RING P.T.F.E. / G.F.T. 2
11 LEVER M.S. 1
12 STUD & NUT M.S. / S.S. --

Technical Data

TECHNICAL DATA
DESIGN & MANUFACTURING STD. BS 5351, API 602
TESTING & INSPECTION STD. API 598 / BS 5146
END CONNECTIONS: SCREWED BSP / BSPT / NPT
SOCKET WELD ENDS ANSI B 16.11
FACE TO FACE: AS PER ANSI B 16.10
