Check Valves Swing Type

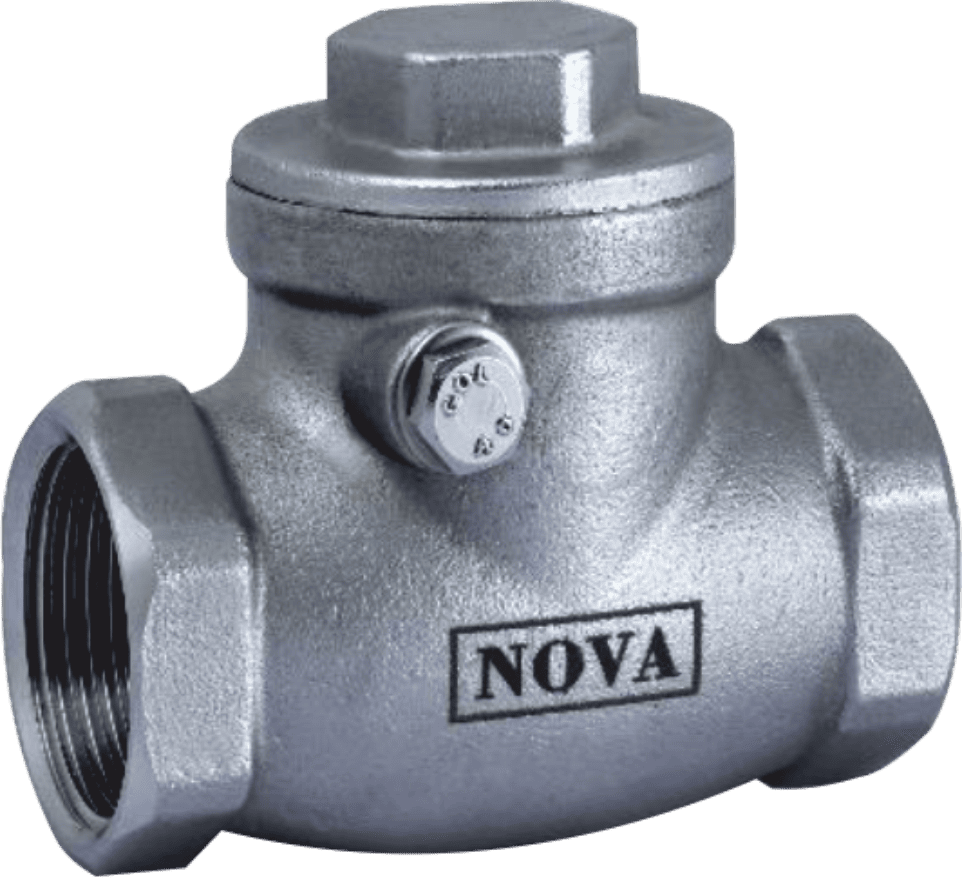

At Nova Valves, we manufacture high quality Swing Type Check Valves. Our Swing Type Check Valves are the highly recommended in Industrial Use, Commercial Use and also Residential Use.

Check Valves Swing Type

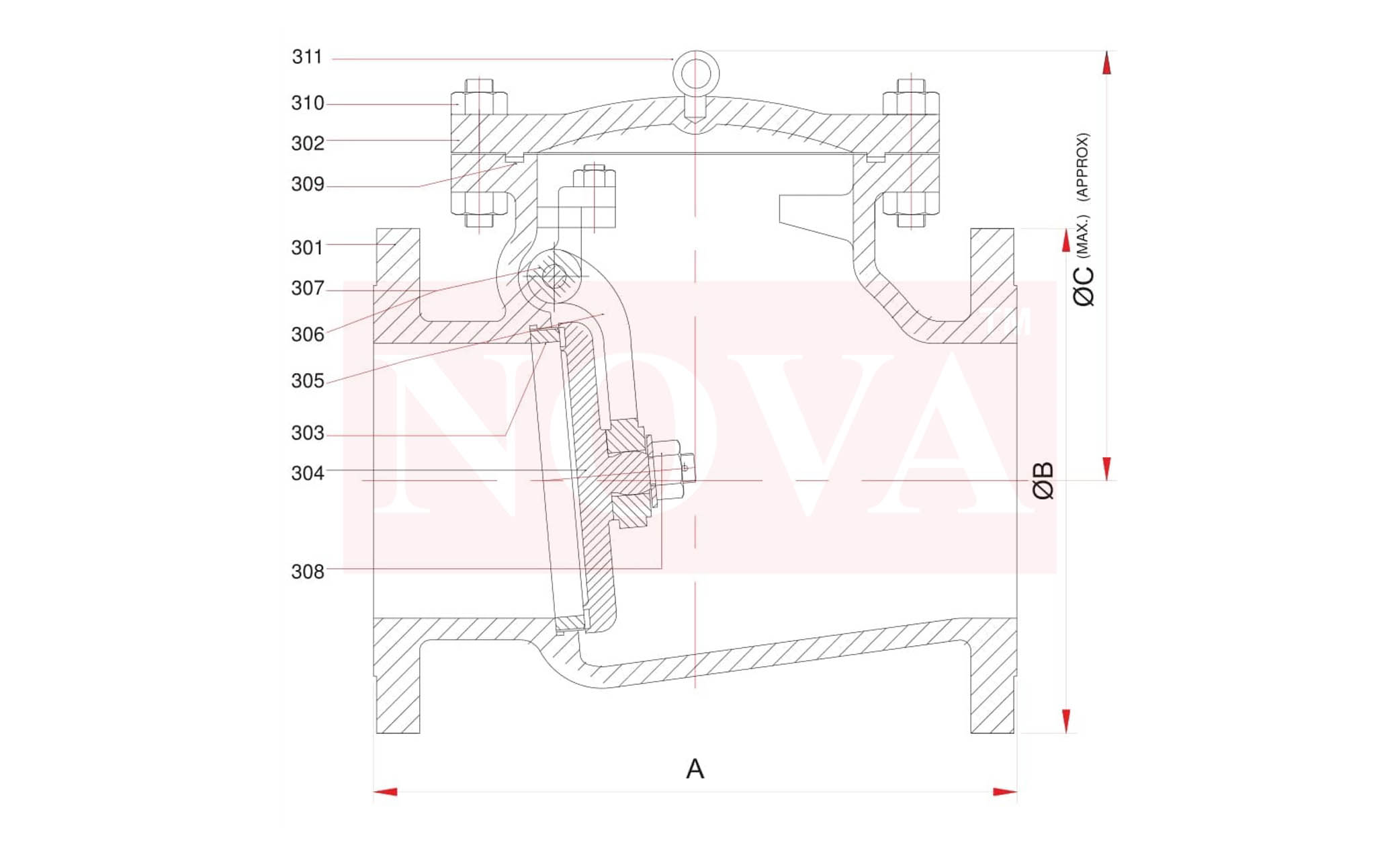

Swing Type Check Valve Drawing

Material Description

SR. NO. PARTS NAME MATERIALS
301 BODY A216-WCB A351-CF8 A351-CF8M
302 COVER A216-WCB A351-CF8 A351-CF8M
303 SEAT RING A105+13%Cr A351-CF8 A351-CF8M
304 DISC A217-CA15 A351-CF8 A351-CF8M
305 DISC CARRIER A276-410 A351-CF8 A276-316
306 HINGE PIN A276-410 A276-CF8 A276-316
307 END PLUG (HEX) A276-304 A276-304 A276-316
308 NUT & WASHER A276-304 A276-304 A276-316
309 GASKET SS+GRAPHITE FILLED
310 FULLTHREAD STUD 2 HEAVY NUTS A193-B7/A194-2H A193-B8/A194-8 A193-B8M/A194-8M
311 LIFTING BOLT 6" & ABOVE ONLY SS

Testing

PRESSURE RATING HYDROSTATIC SHELL TEST HYDROSTATIC SEAT TEST
Kg/CM2 Kg/CM2
150# 31.5 22
300# 79 58
600# 157.5 114

CONFORMITY TO CODES & STANDARDS

1 GENERAL DESIGN API 549
2 TESTING API 598
3 TYPE SWING CHECK
4 RATING CLASS 150, 300, 600
5 FACE TO FACE ASME B 16, 10
6 PRESSURE & TEMPERATURE RATING ASME B 16, 34 (STANDARD CLASS
7 FLANGE STANDARD CONFORMITY ASME B 16, 5

DIMENSION TABLE 150# (ALL DIM. IN MM)

SIZE A ØB C(MAX.)
MM INCH
50 2" 203 52 150
80 3" 241 76 175
100 4" 292 102 195
150 6" 356 153 293
200 8" 495 203 345
250 10" 622 254 403
300 12" 698 305 478
