Ball Valves 2 Piece Flange End

2 Piece Flange End Ball Valves

Nova Valves is a trusted and well known manufacturer of high quality 2 Piece Ball Valves. Our 2 Piece Ball Valves are the highly recommended in Industrial Use, Commercial Use and also Residential Use.

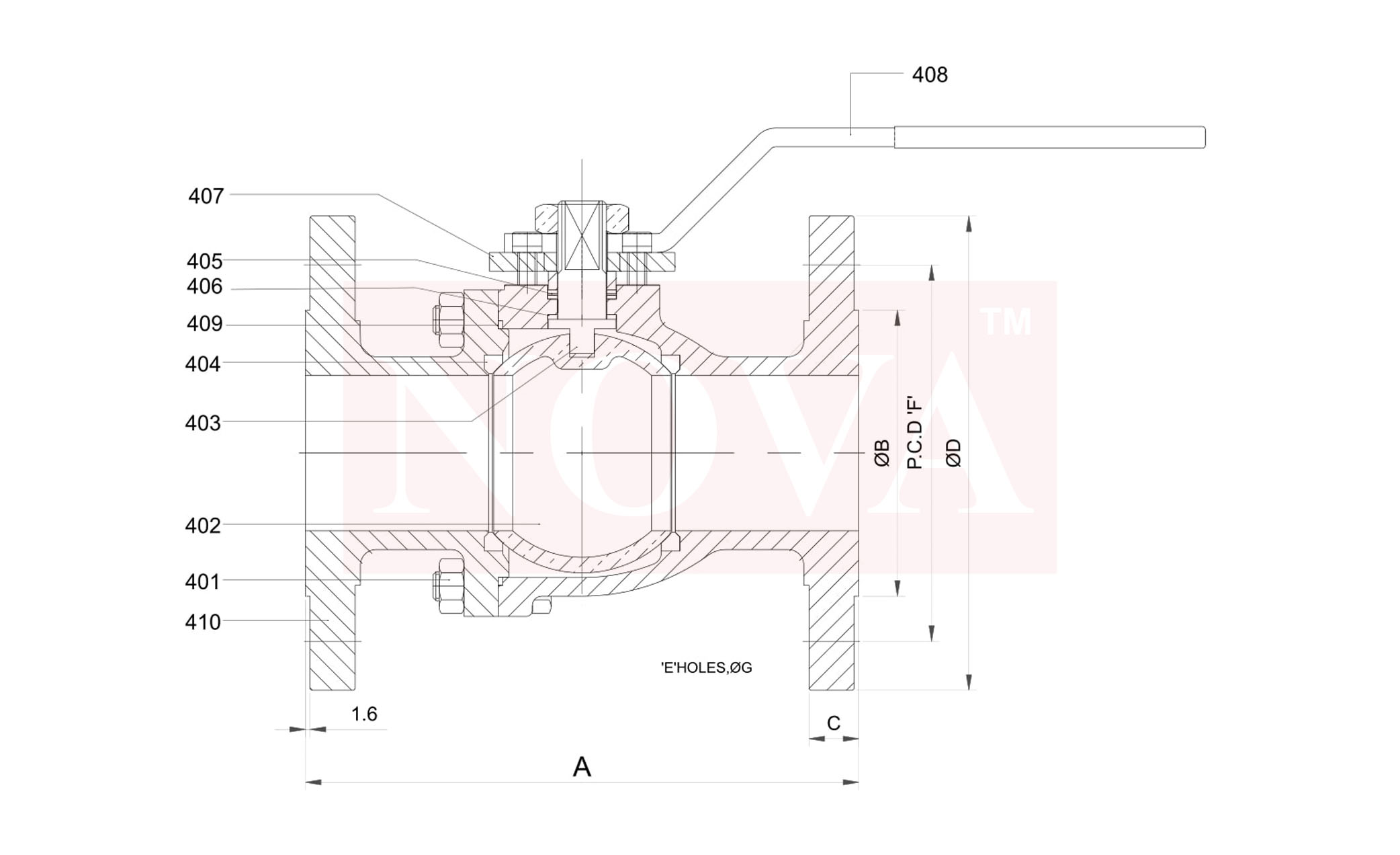

Material Description

SR. NO. PARTS NAME MATERIALS
401 BODY & BODY CONNECTOR A216-WCB A351-CF8 A351-CF8M
402 BALL A216-WCB A351-CF8 A351-CF8M
403 STEM A276-410 A276-304 A276-316
404 SEAT RINGS PTFE/R-PTFE(25%GLASS FILLED)
405 PACKING PTFE/R-PTFE(25%GLASS FILLED)
406 THRUST WASHER PTFE/R-PTFE(25%GLASS FILLED)
407 GLAND & GLAND NUT A216-WCB A351-CF8 A351-CF8M
408 HANDLE MS/SS
409 GASKET PTFE/R-PTFE(25%GLASS FILLED)
410 FASTENER STUD A193-B7 A193-B8 A193-B8M
NUTS A194-2H A194-8 A194-8M

Testing

PRESSURE RATING HYDROSTATIC SHELL TEST HYDROSTATIC SEAT TEST
Kg/CM2 Kg/CM2
150# 31.5 22
300# 79 58
600# 157.5 114

DIMENSION TABLE 150# (ALL DIM. IN MM)

SIZE A ØB C D E F G
MM INCH
25 1" 127 51 11 108 4 79 16
40 1 1/2" 165 73 14 127 4 98 16
50 2" 178 92 16 152 4 121 19
65 2 1/2" 190 105 17 178 4 140 19
80 3" 203 127 19 190 4 152 19
100 4" 229 157 24 229 8 190 19
125 5" 254 186 24 254 8 216 22
150 6" 267 216 25 279 8 241 22
200 8" 292 270 29 343 8 298 22

DIMENSION TABLE 300# (ALL DIM. IN MM)

SIZE A ØB C D E F G
MM INCH
25 1" 165 51 17.5 124 4 89 16
40 1 1/2" 191 73 21 156 4 114 22
50 2" 216 92 22 165 8 127 22
65 2 1/2" 241 105 25 190 8 149 22
80 3" 282 127 29 209 8 168 22
100 4" 305 157 32 254 8 200 22
125 5" 381 186 35 279 8 235 22
150 6" 403 216 37 318 12 270 22

DIMENSION TABLE 600# (ALL DIM. IN MM)

SIZE A ØB C D E F G
MM INCH
25 1" 216 51 23.8 124 4 89 19
40 1 1/2" 241 73 28.6 156 4 114.3 22
50 2" 292 92 31.7 165 8 127 22
65 2 1/2" 330 105 34.8 190 8 149 22
80 3" 356 127 38.1 209 8 168 22
100 4" 432 157 44.5 273 8 216 25.4

CONFORMITY TO CODES & STANDARDS

1 GENERAL DESIGN BS 5351
2 TESTING BS 6755 (Part-1)
3 TYPE TWO PIECE, FLANGE END & FLOATING BALL
4 RATING CLASS 150, 300, 600
5 FACE TO FACE ASME B 16.10
6 PRESSURE & TEMPERATURE RATING ASME B 16.34 (STANDARD CLASS)
7 FLANGE STANDARD CONFORMITY ASME B 16.5
