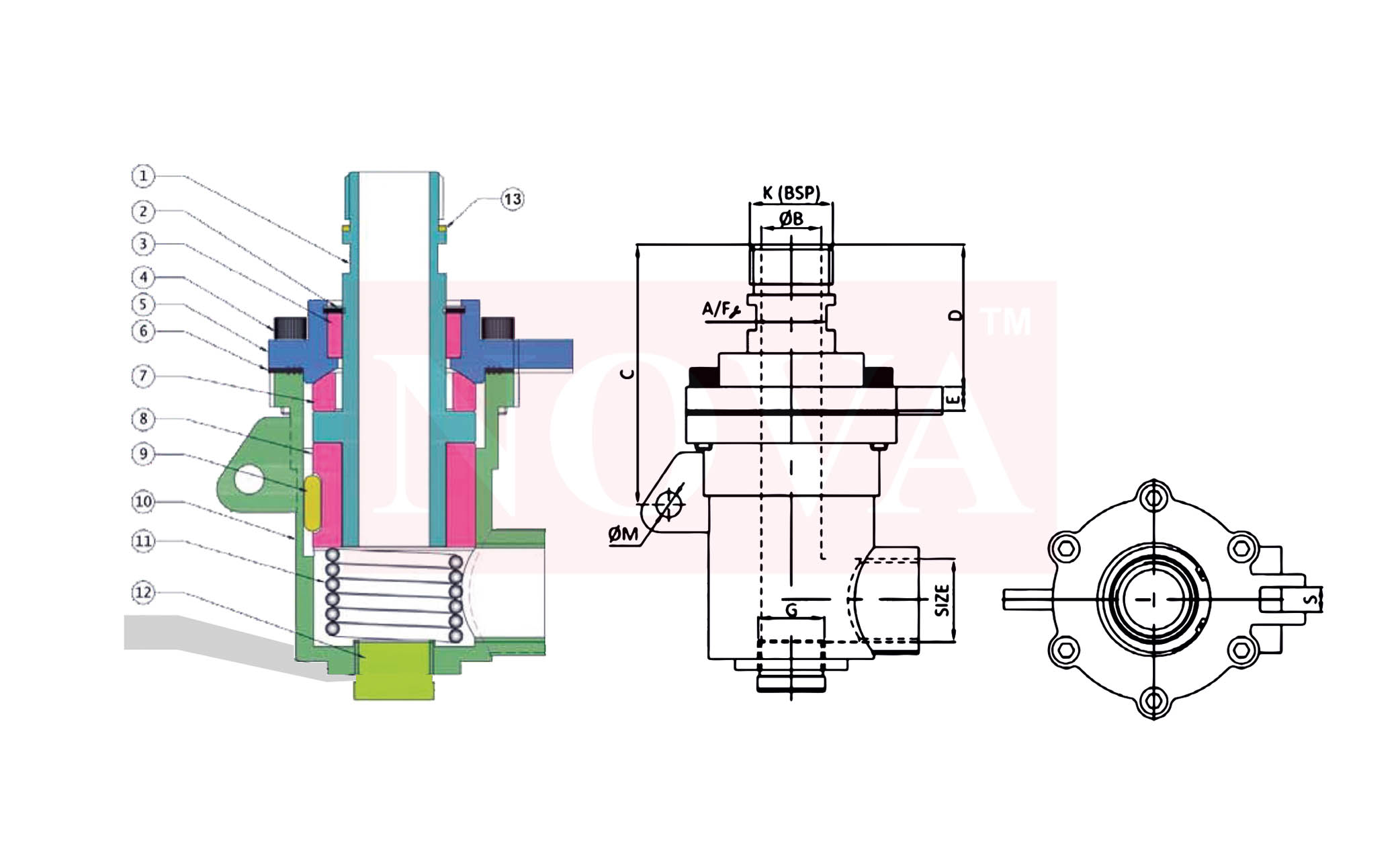

| Model | Size | K (BSP RH / LH) | G | A/F | ØB | C | D | E | S | ØM | Weight (Kg) Approx. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NARH-20 | 3/4" | 3/4" | 1/2" | 30 | 19 | 105 | 57 | 9 | 9.7 | 10 | 2.800 |
| NARH-25 | 1" | 1" | 3/4" | 30 | 24 | 105 | 57 | 9 | 9.7 | 10 | 2.750 |
| NARH-32 | 1 1/4" | 1 1/4" | 1" | 44 | 32 | 165 | 90 | 15 | 17 | 10 | 9.500 |
| NARH-40 | 1 1/2" | 1 1/2" | 1 1/4" | 44 | 34 | 165 | 90 | 15 | 17 | 10 | 9.450 |
| NARH-50 | 2" | 2" | 1 1/4" | 59 | 44 | 168 | 92 | 16 | 17 | 13.8 | 15.200 |
| No. | Part Name | Material |
|---|---|---|
| 1 | Shaft | CF8 (SS 304) |
| 2 | Circlip (Housing) | Stainless Steel |
| 3 | Cover Ring | Carbon |
| 4 | Screw | Standard |
| 5 | Cover | WCB |
| 6 | Gasket | CAF |
| 7 | Seal Ring | Carbon PTFE |
| 8 | Bush | Carbon |
| 9 | Lock Key | Hard Chrome Plated |
| 10 | Body | WCB |
| 11 | Spring | SS 304 |
| 12 | Plug | SS 304 |
| 13 | Washer | Copper |
| Model | NARH |
| Size | 3/4" to 2" (RH & LH Thread) |
| Pressure | Up to 10 kg/cm² |
| Temperature | Up to 350°C |
| RPM | Up to 300 RPM (Max.) |
| Media | Thermic Fluid |
